Album artwork no displaying properly in car

[mplacy]

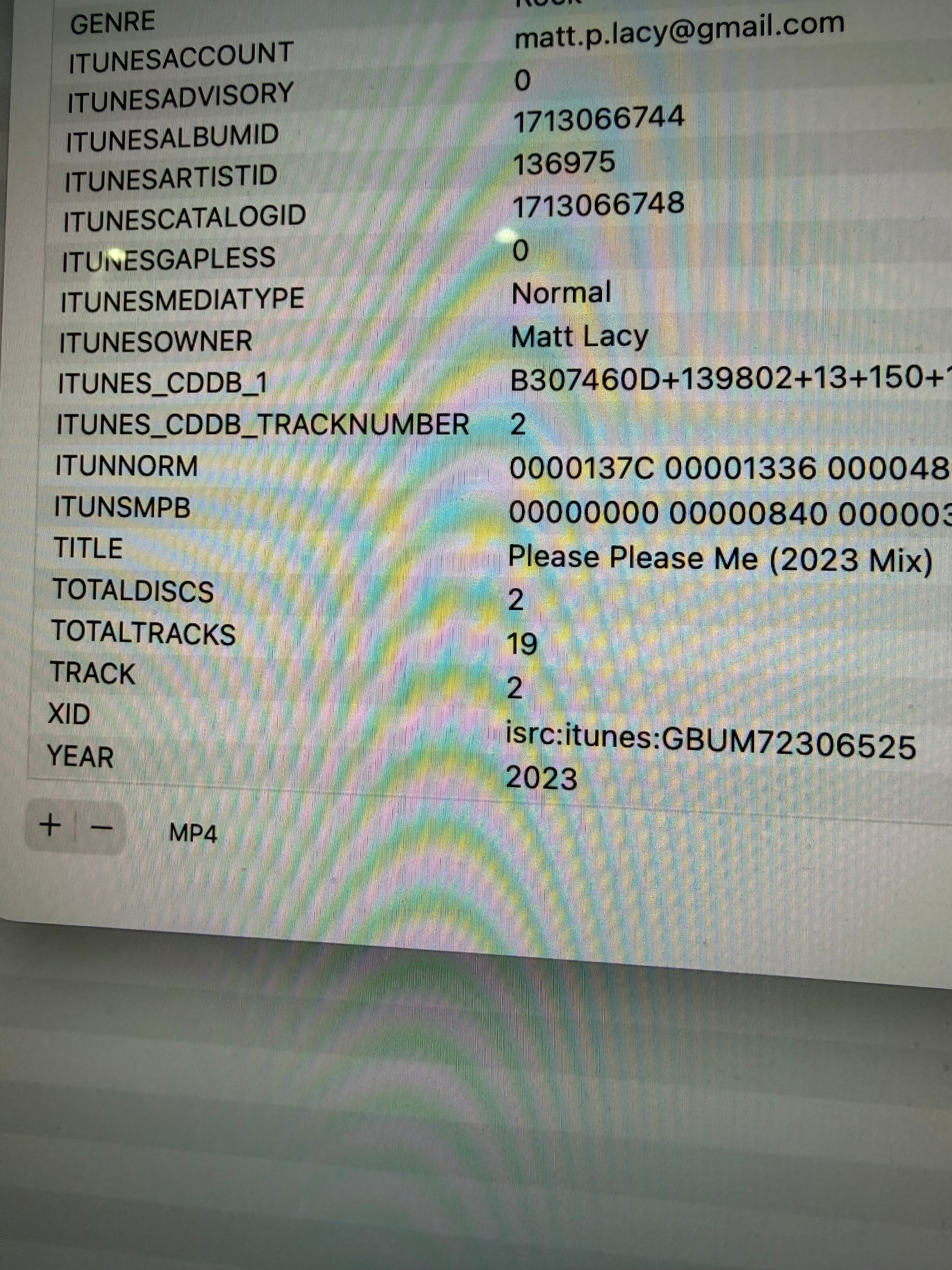

So this is killing me. I have a Range Rover and can’t get the album artwork to display correctly on its infotainment center for certain albums. The issue is typically with Greatest Hits albums only. Normal albums display the artwork correctly. When the album is being displayed incorrectly on the infotainment it is being displayed on my iphone correctly. Go figure. That’s because I have the ITUNESALBUMID, ITUNESCATALOGID, ITUNESARTISTID, ITUNESRATINGADVISORY input correctly so my iPhone (and other Apple devices) are good.

Last thing. When I rip a CD, I use iTunes Match to get the highest quality version. Upon researching, I thought I was losing some data by using iTunes Match, so I created a column for iTunes_CDDB_1 and am now preserving this field which I understand to be linked to Gracenote. This should have fixed my issues by having all fields persevered but it is still displaying incorrectly.

[Doug_Mackie]

@mplacy

I have a Range Rover and can’t get the album artwork to display correctly on its infotainment center for certain albums.

Have you tried the support site for Meridian players?

They are more likely to be helpful than the Mp3Tag forum.

[mplacy]

Ok. I am going to blow this up big time. I also have a Yukon Denali and ALL THE ALBUM ARTWORK DISPLAYS CORRECTLY. Agh!!!

[ohrenkino]

This looks to me like it is a player problem.
You would have to find out what the player likes or what its limitions are.
Points for investigation could be:

• file type (mp3, flac, wav, etc),
• embedded vs. external pictures,
• picture format (jpg, png, etc.),
• picture size.

And once you know (or have tried) what the car stereo likes, then MP3tag will very likely have functions to update the files.

[mplacy]

These songs are Matched and then the appropriate iTunes tags are input so they are M4A files and the artwork is whatever Apple gives when Matched. The music files are all clean, I can assure you that.

[ohrenkino]

@mplacy

These songs are Matched

I read that as that you say that the tags are all up to the mark and do not need any more refinement - so which contribution to solve your problem do you expect from the tagging program MP3tag?

See also this thread:

Car album artwork

Ok. I have the grand daddy of all stumpers. Here is the situation. I “created” the LinkinPark Greatest Hits Album called Papercuts using the original albums. I updated the titles, album, etc date. I then updated the ITUNES ratingadvisory, albumID, artistID and catalogID all to be consistent with Papercuts. The album artwork renders correctly on my Mac, iPhone and IPad. However, it my car’s infotainment center if renders the original albums (not Papercut). Anyone have a solution for this?…

[Amidon37]

My issue was that for some of my mp3's the artwork was saved as a progressive jpg. My car would not load those.

I used MP3 Diags to identify those files then in MP3tag used "adjust cover" and moved the max pixel size 1 smaller than whatever the current size of the artwork was. MP3tag then saves it as a baseline jpg. (I think I got my terminology correct.) You will notice the size change quite a bit.
